    RP-D58

    Explosion Proof Pump for ATEX applications

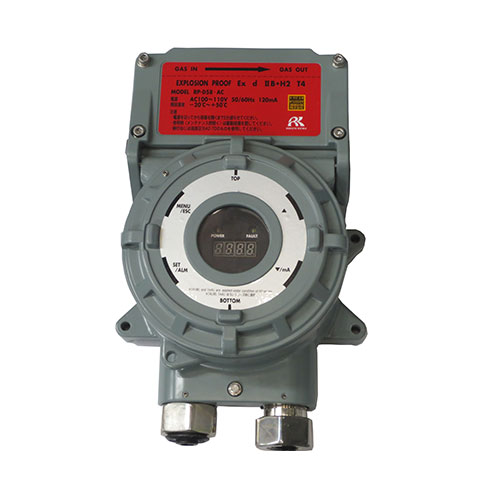

    RP-D58 Hydrogen Explosion Proof Pump ( ATEX )

    RP-D58_Dimensions

    Sampling method

    Suction type

    Explosion protected construction

    Flameproof enclosures

    Explosion-proof class

    Ex dⅡB+H2 T4 Gb

    Ingress proof rating

    IP67

    Approvals

    Japan Ex, ATEX, Others

    Power source

    100 - 110 VAC ±10 % 50/60 Hz
    24 VDC ±10 %

    Dimensions

    Approx. 197 (W) x 286 (H) x 140 (D) mm (excluding projections)

    Weight

    Approx. 5.8kg

    Operating temperature range

    0 to +50℃ (no sudden changes)[RP-D58･AC]
    -20 to +53℃ (no sudden changes)[RP-D58･DC]

    Operating humidity range

    0 to 95 %RH (no condensation)
